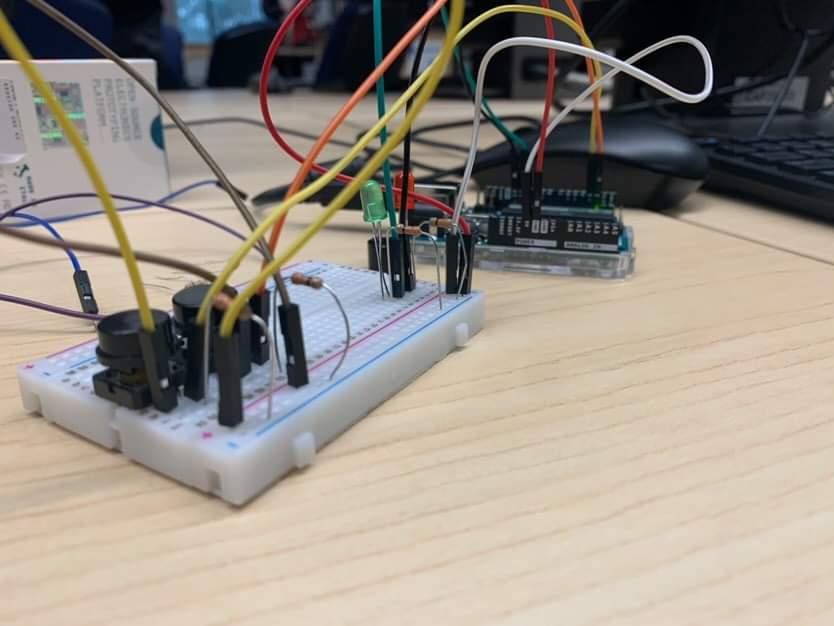

Check out this Simon Says Game, created as a final project!
Check out the code I and my teammates wrote!
/*
Simon Says Game
The arduino displays a set of lights that the user has to copy. Multiple sounds are used to indicate the state of the game
A sound is played at the start, a correct move, a move indicator sound, and a game is lost.
Author: Vince Osorio, Sukh Singh, David Soberano
Date Modified: 12/04/2022
*/
const int speaker = 2;
const int LED_PIN_R = 13;
const int LED_PIN_G = 12;
const int BUTTON_PIN_R = 9;
const int BUTTON_PIN_G = 8;
const int ledR = 1;
const int ledG = 2;
// the setup routine runs once when you press reset:
#include "tunes.h" // A seperate library containing all the notes are used to create a more concise code
void setup(){
pinMode(speaker, OUTPUT); // initialize the speaker with a pin for output.
pinMode(LED_PIN_R, OUTPUT); // initialize the digital pin as an output for led.
pinMode(LED_PIN_G, OUTPUT); // initialize the digital pin as an output for led.
pinMode(BUTTON_PIN_R, INPUT); // initialize the digital pin as an input for the button.
pinMode(BUTTON_PIN_G, INPUT); // initialize the digital pin as an input for the button.
Serial.begin(9600); //intialize serial communication.
randomSeed(analogRead(A0) ); //seeds the random number generator with different input each time.
}
void loop(){
start_tune();
int i = 0;
int j = 0;
int buttonStateR, buttonStateG, userInp;
static int round ; //starting from zero, records the number of rounds.
static int Pattern_Array[20]; //static array for recoding the pattern to display.
seedPattern(Pattern_Array, round); //function call to seed the array with a new pattern in each iteration of void loop.
while(Pattern_Array[i] != -1){ //while statement that turns leds on based on the pattern array until it reaches the sentinel value (-1).
digitalWrite(LED_PIN_R, LOW);
digitalWrite(LED_PIN_G, LOW);
if(Pattern_Array[i] == ledR) //Turns the red led using the red light function if the array has value coressponding to it.
Red_Light();
if(Pattern_Array[i] == ledG) //Turns the red led using the red light function if the array has value coressponding to it.
Green_Light();
i++;
}
for(j = 0; j <= round; j++){
userInp = getUserInp(); // uses a function to get the button input from the user
if(userInp != Pattern_Array[j]){ // if the user input is not right, the if-statement ends the game while playing a sound
delay(500);
end_round();
exit(0);
}
correct_guess(); // if the user input is right, a different tone is played sound
/*Serial.print("iteration:"); //Error Checking
Serial.println(j);
delay(500);*/
}
round++; //increments the round variable at the end of each round
delay(500); //delay of 3 seconds between each round.
}
/*
************************
*Turns the red light on*
************************ */
void Red_Light(){
digitalWrite(LED_PIN_R, HIGH); // turn the LED on (HIGH is the voltage level)
delay(500); // wait for a second
digitalWrite(LED_PIN_R, LOW); // turn the LED off by making the voltage LOW
delay(500);
}
/*
***************************
*Turns the green light on*
*************************** */
void Green_Light(){
digitalWrite(LED_PIN_G, HIGH);
delay(500);
digitalWrite(LED_PIN_G, LOW);
delay(500);
}
/*
*************************************
*Seed the array with random pattern.*
************************************* */
void seedPattern(int pattern[],int round){
int i;
int randomNumber;
for(i = 0; i <= round; i++){ //Seeds each index of array with a random ledpattern.
randomNumber = random(1, 3); // generates a random integer between 1 and 2
Serial.println(randomNumber);
pattern[i] = randomNumber; //array is intialized with this pattern
}
pattern[round+1] = -1; //-1 is used as an null character to specify the end of array.
}
/*
*******************************************************************
*Get user input and return the ID of the button that was pressed*
******************************************************************* */
int getUserInp(){
long int gameTime1 = millis(); //time at start of the function is noted
long int gameTime2;
int buttonStateR, buttonStateG;
//Serial.println("Check");
Serial.println(gameTime1);
while(buttonStateR == HIGH || buttonStateG == HIGH){ // a loop to make the program wait for the user unpress the button
buttonStateR = digitalRead(BUTTON_PIN_R);
buttonStateG = digitalRead(BUTTON_PIN_G);
}
buttonStateR = digitalRead(BUTTON_PIN_R);
buttonStateG = digitalRead(BUTTON_PIN_G);
while(buttonStateR == LOW && buttonStateG == LOW){ // loop designed to keep checking the button state until an input from the user is obtained
input_indicator();
buttonStateR = digitalRead(BUTTON_PIN_R);
buttonStateG = digitalRead(BUTTON_PIN_G);
gameTime2 = millis(); //game at this point in the function is noted, while being updated in each iteration of the loop until a user input is received
if( gameTime2 - gameTime1 >= 3000){ //the if-statement triggers when the loop has been going for more then 3 seconds and no input has been received
return 0; //zero is returned, indicating that no input was received
}
}
if(buttonStateR == HIGH){ //turns the red light if the button corresponding to it is pressed
Red_Light();
return 1; //the id for the red button is returned if it is pressed
}
if(buttonStateG == HIGH){ //turns the green light if the button corresponding to it is pressed
Green_Light();
return 2; //the id for the green button is returned if it is pressed
}
Serial.println("Check2");
}
void start_tune(){ //Start of a round Tune
tone(speaker,NOTE_A3);
delay(150);
tone(speaker,NOTE_D4);
delay(150);
tone(speaker, NOTE_A3);
delay(150);
tone(speaker, NOTE_A4);
delay(150);
noTone(speaker);
}
void lose_tune(){ // Alternate End of a round tune
tone(speaker,NOTE_GS3);
delay(300);
tone(speaker, NOTE_FS3);
delay(300);
tone(speaker, NOTE_E3);
delay(300);
tone(speaker, NOTE_CS3);
delay(300);
noTone(speaker);
}
void correct_guess(){ //Correct Guess Tune
tone(speaker, NOTE_C4);
delay(100);
noTone(speaker);
}
void input_indicator(){ //Input indicator Tune
tone(speaker,NOTE_DS3);
delay(100);
tone(speaker,NOTE_C3);
delay(100);
noTone(speaker);
}
void end_round(){ //End game tune
tone(speaker, NOTE_A3);
delay(300);
tone(speaker, NOTE_E5);
delay(300);
tone(speaker, NOTE_A5);
delay(300);
noTone(speaker);
}
